Left Lane Must Turn Left Sign R3-7L

Left Lane Must Turn Left Sign R3-7L MUTCD Regulatory Traffic Sign 30x30 inch Download Free JPG + PNG

Product Description

This Left Lane Must Turn Left Sign (MUTCD R3-7L) digital file is designed in full compliance with the Federal Highway Administration's Manual on Uniform Traffic Control Devices (MUTCD) . The artwork reflects official lane-use control sign standards, including correct rectangular panel dimensions, black-on-white color scheme, FHWA-Series Font, and proper border clearances. Ideal for traffic engineers preparing intersection design plans, sign manufacturers producing fabrication-ready artwork, graphic designers working on transportation or safety projects, and government agencies requiring accurate signage reference files. All files are delivered as an instant digital download — no physical product is shipped. Each format is print-ready and fully scalable to any reproduction size without loss of quality.Explore our USA road collection for more regulatory signs.

Technical Specifications

Resolution 300 DPI
Color Mode CMYK
Text Converted to Outlines
Shapes Expanded & Vector Optimized
Files Included EPS, SVG, PDF, JPG, PNG
Size 30" × 30"

Note: Secure checkout is processed through Gumroad. After completing your purchase, you’ll receive immediate access to download your files. If you need any assistance, please feel free to contact us.

Design Process Preview

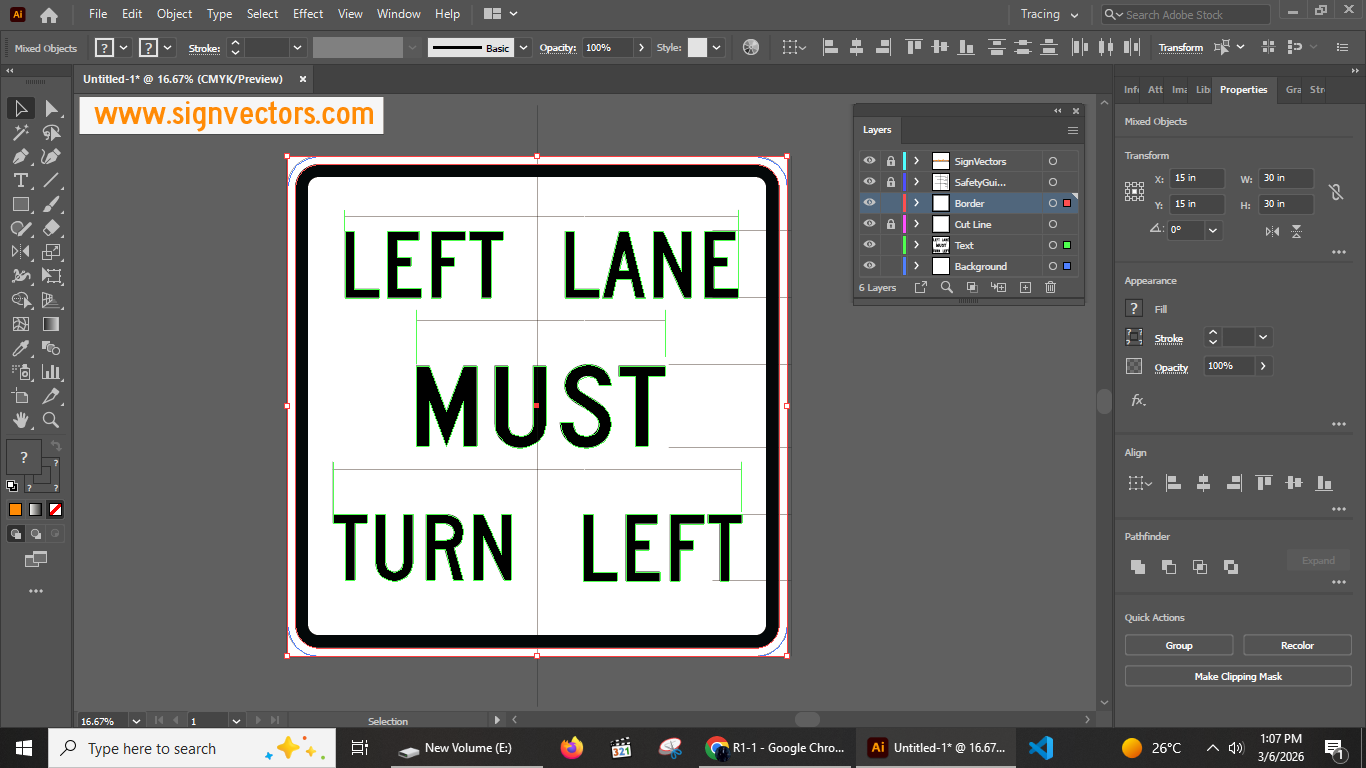

Screenshot from the original Adobe Illustrator working file. Shows layers, vector paths, and professional setup for print production.

Left Lane Must Turn Left Sign R3-7L Illustrator Working File Screenshot

Frequently Asked Questions

What does the Left Lane Must Turn Left sign mean?

The Left Lane Must Turn Left sign indicates that vehicles traveling in the left lane are required to make a left turn at the upcoming intersection. Drivers in this lane are not permitted to continue straight or turn right.

Where is the R3-7L Left Lane Must Turn Left sign used?

The R3-7L Left Lane Must Turn Left sign is typically installed at intersections, urban streets, and multi-lane roadways where traffic control requires vehicles in the left lane to turn left for safer and more organized traffic movement.

Why are mandatory lane turn signs important?

Mandatory lane control signs help guide drivers into the correct lane before reaching an intersection. They improve traffic flow, reduce congestion, and help prevent sudden lane changes that could lead to accidents.

Is this sign compliant with MUTCD standards?

Yes. The R3-7L Left Lane Must Turn Left sign follows official MUTCD regulatory standards with accurate layout, colors, and proportions used for professional roadway signage and traffic control systems.

What file formats are included in the download?

The download includes scalable vector formats (EPS, SVG, PDF) suitable for professional editing and printing, along with high-resolution JPG and PNG files for preview and digital use.

What size is the sign?

The sign is designed in the standard regulatory traffic size commonly used for lane control signage on roads and highways.

Is this a physical product?

No. This is a digital download product. After purchase, you will receive the vector files instantly. No physical sign will be shipped.

Is commercial use allowed?

Yes. The vector files can be used by traffic engineers, contractors, designers, and infrastructure planners for professional roadway and transportation projects.
