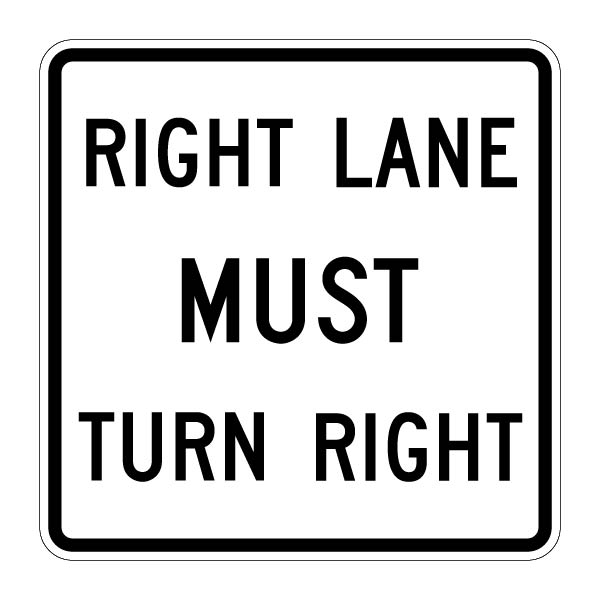

R3-7R - Right Lane Must Turn Right Sign
Product Description
This Right Lane Must Turn Right Sign (MUTCD R3-7R) digital file is precision-drafted in full compliance with the Federal Highway Administration's
Manual on Uniform Traffic Control Devices (MUTCD)
for lane-use control signage. The artwork features the FHWA-approved Text on a black-on-white rectangular panel at official dimensions, with correct stroke weights, proper border clearances, and accurate proportions.
Used by traffic engineers preparing intersection design plans and turn movement studies, sign manufacturers producing fabrication-ready artwork, graphic designers working on transportation safety projects, and government agencies requiring standards-compliant lane control signage for permit submissions and construction documents.
Delivered as an instant digital download in five professional formats — fully scalable vector and high-resolution raster options included. No physical product is shipped.Explore our USA road collection for more regulatory signs.
Technical Specifications
| Resolution |
300 DPI |
| Color Mode |
CMYK |
| Text |
Converted to Outlines |
| Shapes |
Expanded & Vector Optimized |
| Files Included |
EPS, SVG, PDF, JPG, PNG |
| Size |
30" × 30" |
Note:
Secure checkout is processed through
Gumroad. After completing your purchase, you’ll
receive immediate access to download your files. If you need any
assistance, please feel free to
contact us.

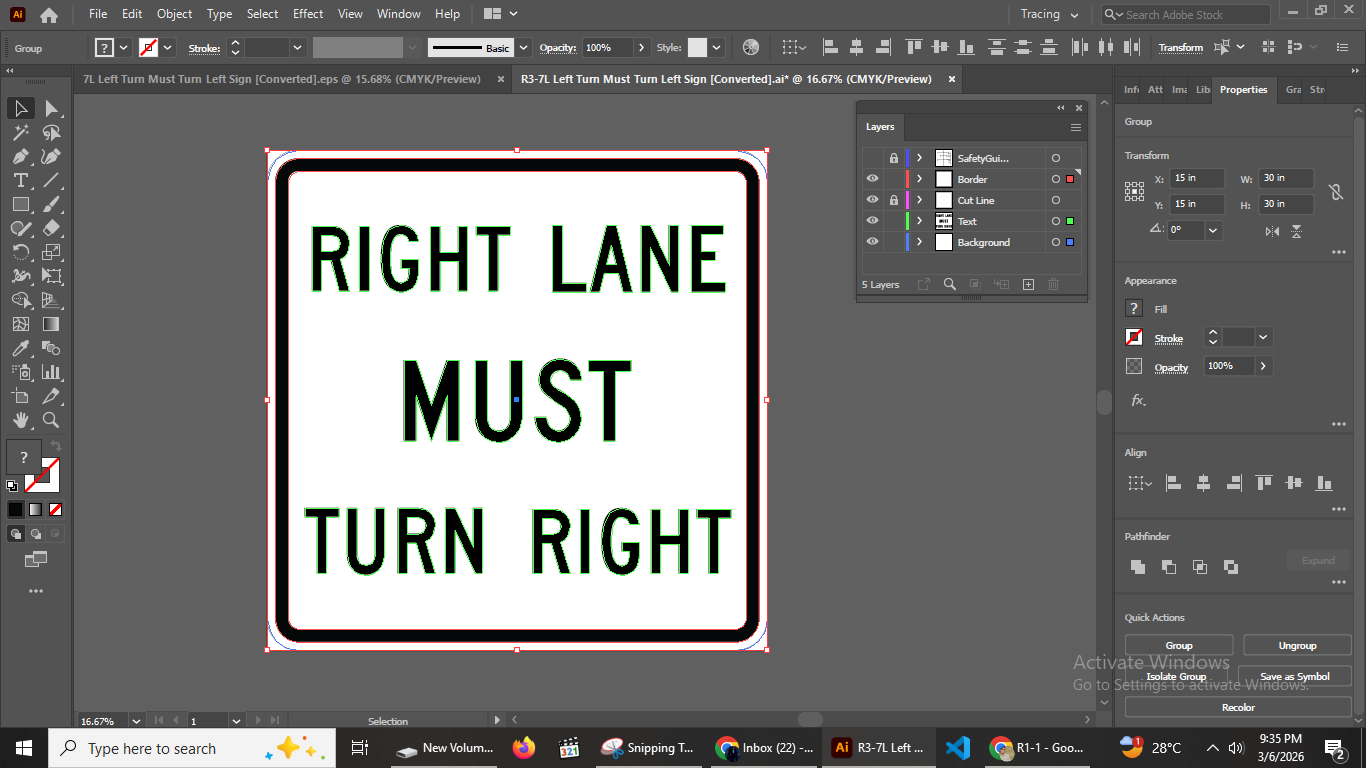

Design Process Preview
Screenshot from the original Adobe Illustrator working file.
Shows layers, vector paths, and professional setup for print production.
Frequently Asked Questions
What does the Right Lane Must Turn Right sign mean?
The Right Lane Must Turn Right sign indicates that vehicles traveling in the
right lane are required to make a right turn at the upcoming intersection.
Drivers in this lane are not permitted to continue straight or turn left.
Where is the R3-7R Right Lane Must Turn Right sign used?
The R3-7R Right Lane Must Turn Right sign is typically installed at
intersections, urban streets, and multi-lane roadways where traffic
control requires vehicles in the right lane to turn right for safer
and more organized traffic movement.
Why are mandatory lane turn signs important?
Mandatory lane control signs help guide drivers into the correct lane
before reaching an intersection. They improve traffic flow, reduce
congestion, and help prevent sudden lane changes that could lead
to accidents.
Is this sign compliant with MUTCD standards?
Yes. The R3-7R Right Lane Must Turn Right sign follows official MUTCD
regulatory standards with accurate layout, colors, and proportions
used for professional roadway signage and traffic control systems.
What file formats are included in the download?
The download includes scalable vector formats (EPS, SVG, PDF) suitable
for professional editing and printing, along with high-resolution JPG
and PNG files for preview and digital use.
What size is the sign?
The sign is designed in the standard regulatory traffic size commonly
used for lane control signage on roads and highways.
Is this a physical product?
No. This is a digital download product. After purchase, you will receive
the vector files instantly. No physical sign will be shipped.
Is commercial use allowed?
Yes. The vector files can be used by traffic engineers, contractors,
designers, and infrastructure planners for professional roadway and
transportation projects.
