R7-1 No Parking Any Time MUTCD Compliant Vector
M.Ibrahim — Senior Traffic Sign Designer
Design Process and Preview
The R7-1 No Parking sign is created using a simple multi-layer vector setup to keep everything clean, accurate, and ready for professional printing. Each part of the design is separated into layers so spacing, alignment, and proportions stay consistent.
Layer Structure Breakdown:
1. Base Shape Layer: A 12 × 18 inch sign shape with 1.5 inch rounded corners and a 0.375 inch inset creates the main structure of the sign.
2. Border Layer: A red border with 0.375 inch thickness forms the outer frame of the sign and makes it clearly visible.
3. Safe Inner Area Layer: A white background area inside the border keeps space clean for text and any symbols, making everything easy to read.
4. Text Layer: The “NO PARKING” text (and any time-based restriction text if used) is placed and aligned carefully for clear and simple readability.
5. Arrow Layer: Any arrow elements are added and aligned properly to show direction clearly when required.
6. Alignment & Guide Layer: Guide lines are used to keep everything centered and evenly spaced across the whole design.
This setup keeps the R7-1 No Parking sign simple, clean, and fully ready for export in EPS, AI, PDF, SVG, PNG, and JPG formats.

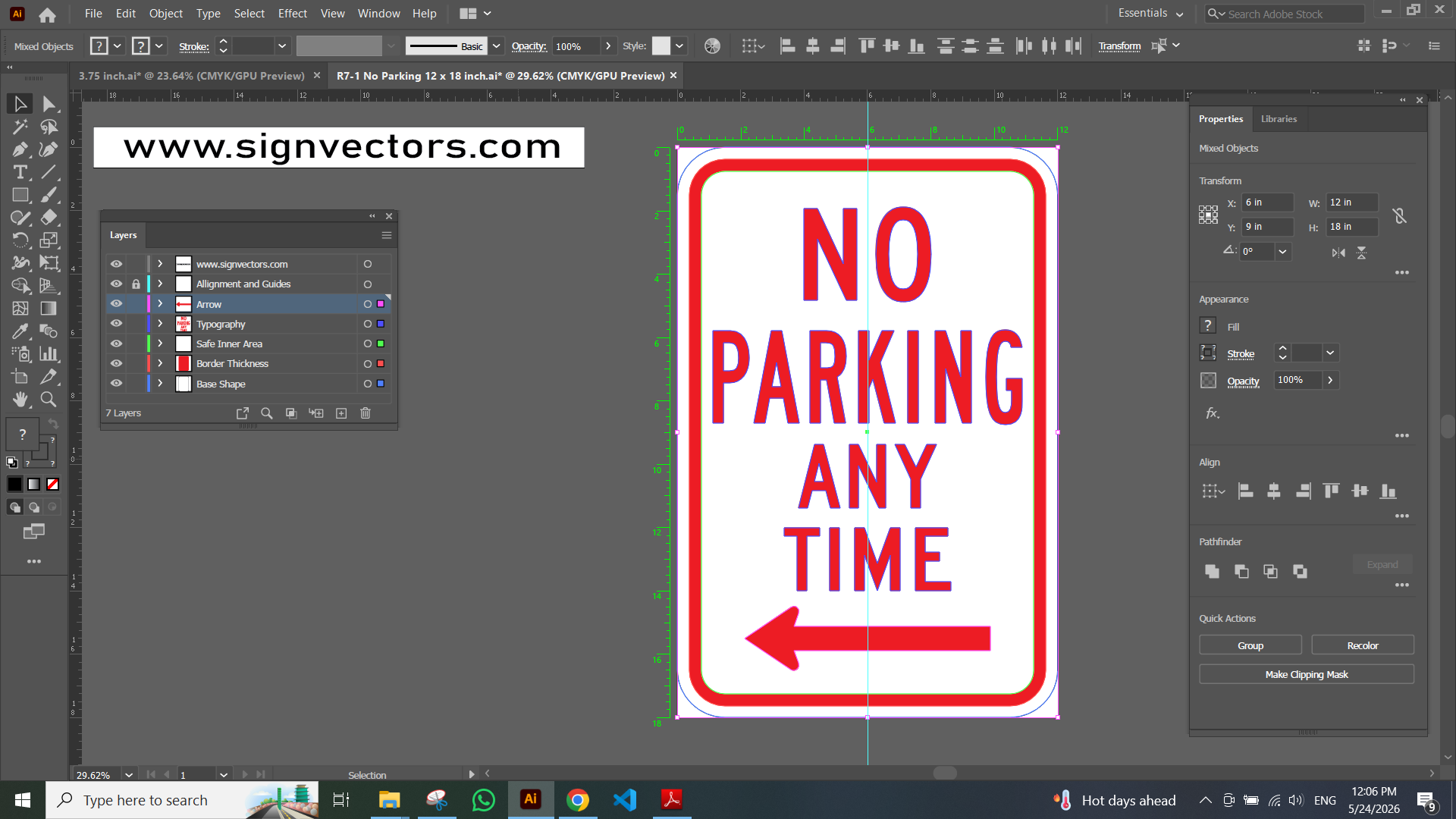

Adobe Illustrator working file — layers, vector paths, CMYK values visible
- ✓ Designed according to MUTCD Section 2B dimension standards.
- ✓ FHWA Series C and B
- ✓ CMYK color mode (print-safe)
- ✓ 300 DPI — no pixelation at any print size
- ✓ All shapes expanded & optimized
- ✓ Tested in Illustrator, CorelDRAW & AutoCAD
Technical Specifications
| Sign Code | R7-1 |
| Standard | MUTCD — Regulatory Signs (Section 2B) |
| Available Sizes | 12 × 18 in (print standard) | 2000 × 2000 px (digital use) |
| Print Package | CMYK, 12 × 18 in, EPS / PDF / AI (print-ready vector files) |
| Digital Package | RGB, 2000 × 2000 px, SVG / EPS / PNG / JPG (web & screen optimized) |
| Color Mode | CMYK (print) / RGB (digital) |
| Resolution | 300 DPI (print export) / 3000 × 3000 px (web export) |
| Text | Converted to outlines for full compatibility across all software |
| Shapes | Fully expanded, scalable vector paths |
| Software Compatibility | Adobe Illustrator, CorelDRAW, Inkscape, AutoCAD |
What Does the R7-1 No Parking Any Time Sign Mean?
The R7-1 No Parking Any Time Sign means that parking is not allowed on the road at any time. Vehicles cannot stop or park in this area, even for a short period.
This sign is usually placed in areas where keeping the roadway clear is important for traffic flow, safety, or access. It applies 24/7 without any exceptions.
By restricting parking at all times, this sign helps improve traffic movement, reduces congestion, and ensures emergency or regular traffic can pass without obstruction.
Frequently Asked Questions
What is the R7-1 No Parking Any Time Sign?
This is a regulatory sign that means parking is not allowed at any time. Vehicles are not permitted to stop or park in this area under any condition.
What does the R7-1 sign mean in traffic control?
It means that the area must remain completely free of parked vehicles 24/7. No stopping or parking is allowed at any time.
Why is the No Parking Any Time sign important?
It helps keep roads clear for traffic flow, improves safety, and ensures emergency and regular vehicles can move without obstruction.
Where is this sign usually installed?
It is typically installed in areas where parking would cause congestion, safety issues, or block important access routes.
Is this design MUTCD compliant?
Yes, the design follows MUTCD guidelines with proper layout, spacing, and clear regulatory messaging for professional use.
Can I use this sign for professional projects?
Yes, it can be used for traffic control designs, road safety planning, engineering projects, and professional signage applications.
