R3-12b HOV Lane Ends ½ Mile Sign
Design Process Preview

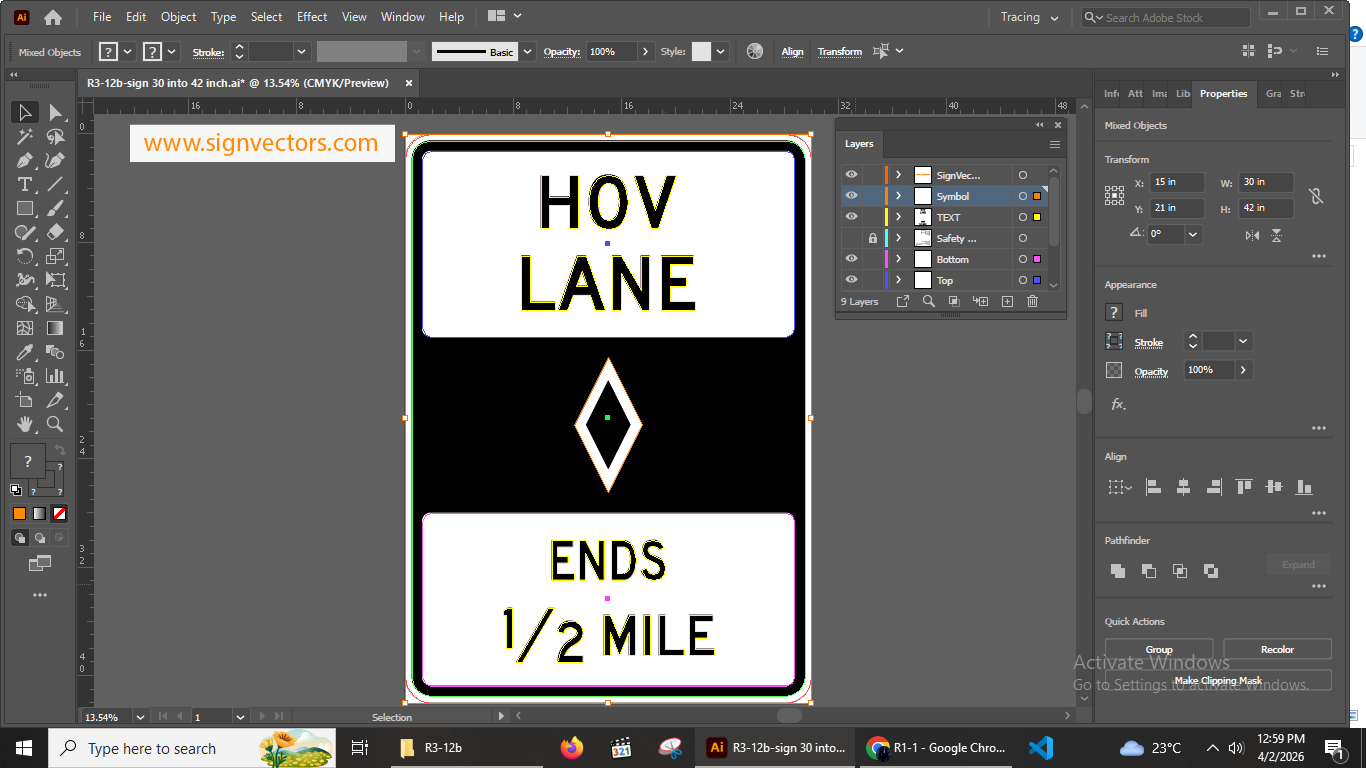

Screenshot from the original Adobe Illustrator working file. Shows layers, vector paths, and professional setup for print production.
Product Description
Professionally designed in full compliance with MUTCD standards, this R3-12b HOV Lane Ends ½ Mile sign ensures accuracy and real-world usability. It is available in standard sizes including 30×42", 36×60", and 48×84", meeting official roadway specifications.
Delivered in high-quality formats—EPS, SVG, PDF, JPG, and PNG—this vector file is fully scalable, print-ready, and easy to use for both digital and production workflows. A reliable solution for traffic engineers, designers, and commercial projects.
About the R3-12b Sign
The R3-12b HOV Lane Ends ½ Mile sign warns drivers that the High-Occupancy Vehicle (HOV) lane will end in half a mile. It provides advance notice so drivers can safely prepare to merge into general-purpose lanes. This sign is typically used on highways and major roads to improve traffic flow and ensure smooth lane transitions.
Technical Specifications
| Resolution | 300 DPI |
| Color Mode | CMYK |
| Text | Converted to Outlines |
| Shapes | Expanded & Vector Optimized |
| Files Included | EPS, SVG, PDF, JPG, PNG |
| Size | All Standard Sizes |
Note: Secure checkout is processed through Gumroad. After completing your purchase, you’ll receive immediate access to download your files. If you need any assistance, please feel free to contact us.
