R3-12a HOV Lane Ends Sign – MUTCD Standard Vector

R3-12a HOV Lane Ends Sign – MUTCD Standard Vector Download Free JPG + PNG

Design Process Preview

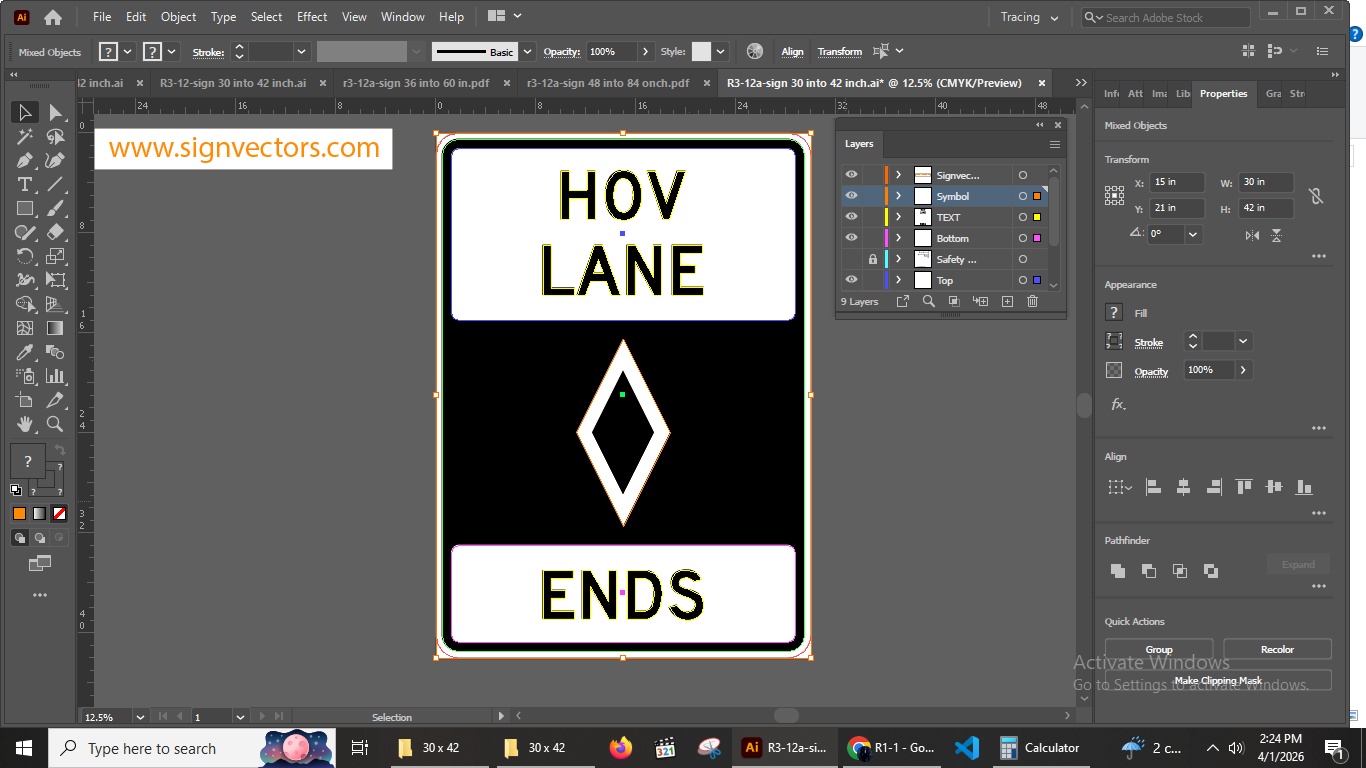

Screenshot from the original Adobe Illustrator working file. Shows layers, vector paths, and professional setup for print production.

R3-12a HOV Lane Ends Sign Illustrator working file preview

Product Description

Professionally designed in full compliance with MUTCD standards, this R3-12a HOV Lane Ends sign ensures precision, consistency, and real-world usability. It is available in standard sizes: 30×42", 36×60", and 48×84", meeting official roadway specifications.

Delivered in five industry-ready formats—EPS, SVG, PDF, JPG, and PNG—this vector file is suitable for high-resolution printing, scaling, and digital use. A reliable and ready-to-use asset for traffic engineers, designers, and compliance-focused projects.

About the R3-12a Sign

The R3-12a HOV Lane Ends sign indicates that a High-Occupancy Vehicle (HOV) lane restriction is ending ahead. After this point, all vehicles are allowed to use the lane, regardless of the number of occupants. This sign is typically placed at the end of HOV lanes on highways and major roads to inform drivers that the special lane rules no longer apply, helping ensure a smooth and safe transition for traffic.

Technical Specifications

Resolution 300 DPI
Color Mode CMYK
Text Converted to Outlines
Shapes Expanded & Vector Optimized
Files Included EPS, SVG, PDF, JPG, PNG
Size All Standard Sizes

Note: Secure checkout is processed through Gumroad. After completing your purchase, you’ll receive immediate access to download your files. If you need any assistance, please feel free to contact us.

Frequently Asked Questions

What is the R3-12a HOV Lane Ends sign used for?

The R3-12a sign indicates the end of a High-Occupancy Vehicle (HOV) lane restriction. It informs drivers that the special lane rules no longer apply beyond this point.

What does “HOV Lane Ends” mean?

“HOV Lane Ends” means that vehicles are no longer required to meet occupancy rules (such as 2+ passengers), and all vehicles can use the lane normally.

Where is the R3-12a sign typically placed?

This sign is usually installed at the termination point of HOV lanes on highways and major roads to guide drivers during the transition to general-purpose lanes.

Is this sign designed according to MUTCD standards?

Yes, this vector sign is designed in full compliance with MUTCD standards, ensuring accurate layout, proportions, and usability for professional applications.

What file formats are available?

The sign is available in multiple high-quality formats including EPS, SVG, PDF, JPG, and PNG, making it suitable for both print and digital use.

Can this sign be used for commercial projects?

Yes, the files can be used for commercial purposes such as printing, design projects, and traffic-related applications, depending on your license terms.
