R3-11 HOV Lane Sign (MUTCD Standard)

R3-11 HOV Lane Sign MUTCD regulatory traffic sign vector Download Free JPG + PNG

Design Process Preview

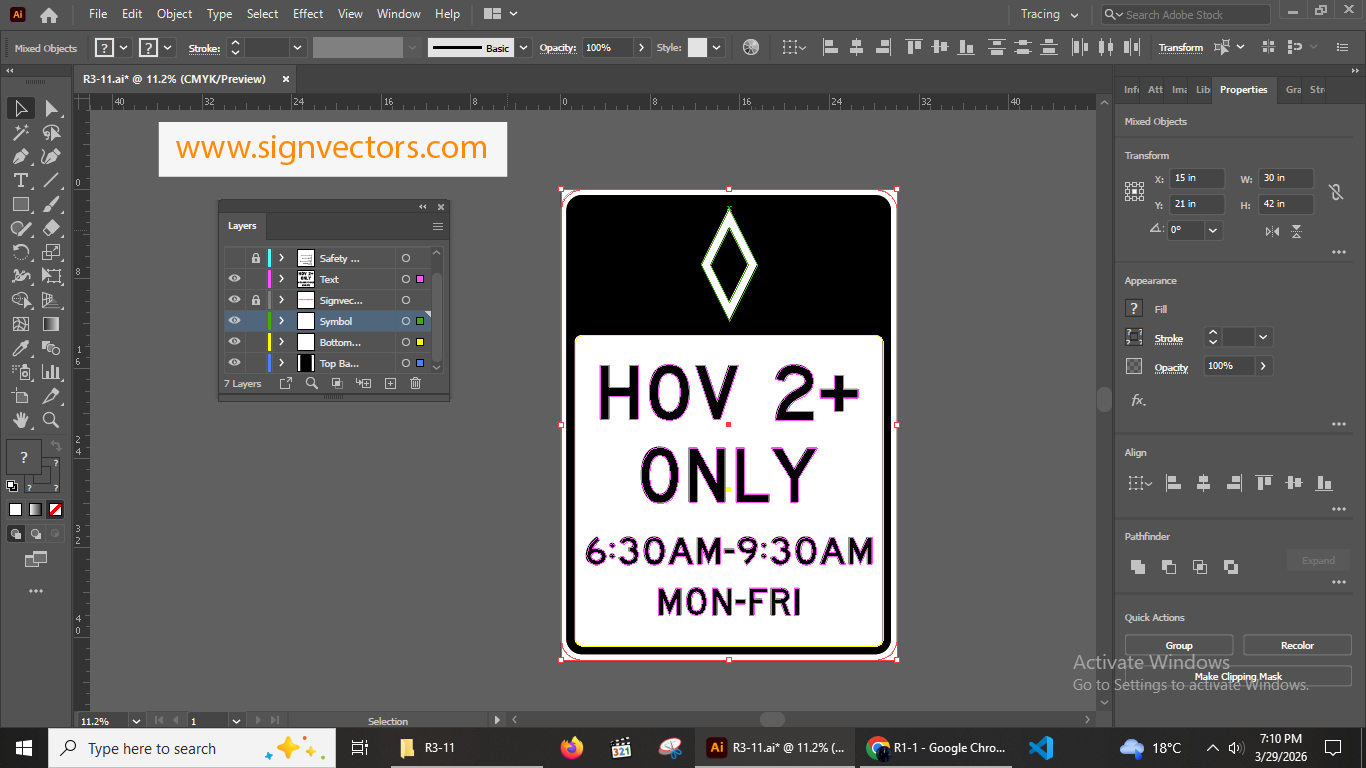

Screenshot from the original Adobe Illustrator working file. Shows layers, vector paths, and professional setup for print production.

R3-11 hov lane sign Sign MUTCD vector Illustrator file layers preview

Product Description

The R3-11 HOV Lane Sign (High Occupancy Vehicle Lane) is a standard regulatory traffic sign defined by the MUTCD (Manual on Uniform Traffic Control Devices). It is used to designate lanes reserved for vehicles carrying multiple passengers, helping improve traffic flow and reduce congestion.

This professionally designed vector file is created according to official MUTCD specifications, including accurate layout, typography, spacing, and border proportions. Whether you're working on roadway design, transportation planning, simulations, or educational projects, this file is ready for immediate use—no adjustments needed.

All common standard sizes are included, giving you full flexibility for both digital and print applications. The design is fully scalable without any loss of quality, making it perfect for large-format printing and high-resolution displays.

If you're building a complete signage system, you can also explore the full USA road collection to maintain a consistent, professional look across all your designs.

Technical Specifications

Resolution 300 DPI
Color Mode CMYK
Text Converted to Outlines
Shapes Expanded & Vector Optimized
Files Included EPS, SVG, PDF, JPG, PNG
Size ALL standard sizes

Note: Secure checkout is processed through Gumroad. After completing your purchase, you’ll receive immediate access to download your files. If you need any assistance, please feel free to contact us.

Frequently Asked Questions

What is the R3-11 HOV Lane Sign used for?

This sign indicates that the designated lane is restricted to High-Occupancy Vehicles (HOV) with at least 2 occupants during the morning rush hour. It helps manage traffic flow and encourages carpooling.

What does “HOV 2+ Only” mean?

“HOV 2+ Only” means your vehicle must have two or more people inside, including the driver, to legally use the lane during the restricted hours.

When are the lane restrictions active?

The restriction is in effect from 6:30 AM to 9:30 AM, Monday through Friday. Outside these hours, the lane usually reverts to a general-purpose lane open to all vehicles.

Are there exceptions for certain vehicles?

Yes. Some jurisdictions allow motorcycles, buses, or permitted clean-air vehicles to use the HOV lane even with only one occupant. Always check local traffic rules for specific exemptions.

What happens if I use the lane without meeting the requirements?

This is a regulatory sign. Using the lane without the required number of passengers during restricted hours can result in a traffic citation and fines.

Can this sign be edited or customized?

Yes, the vector files (EPS, SVG, AI, PDF) are fully editable. You can modify text, layout, or design elements in software like Adobe Illustrator for your project or local requirements.
