R3-11b Buses Only Lane Sign (MUTCD Standard)

R3-11b Buses only Lane Sign MUTCD regulatory traffic sign vector Download Free JPG + PNG

Design Process Preview

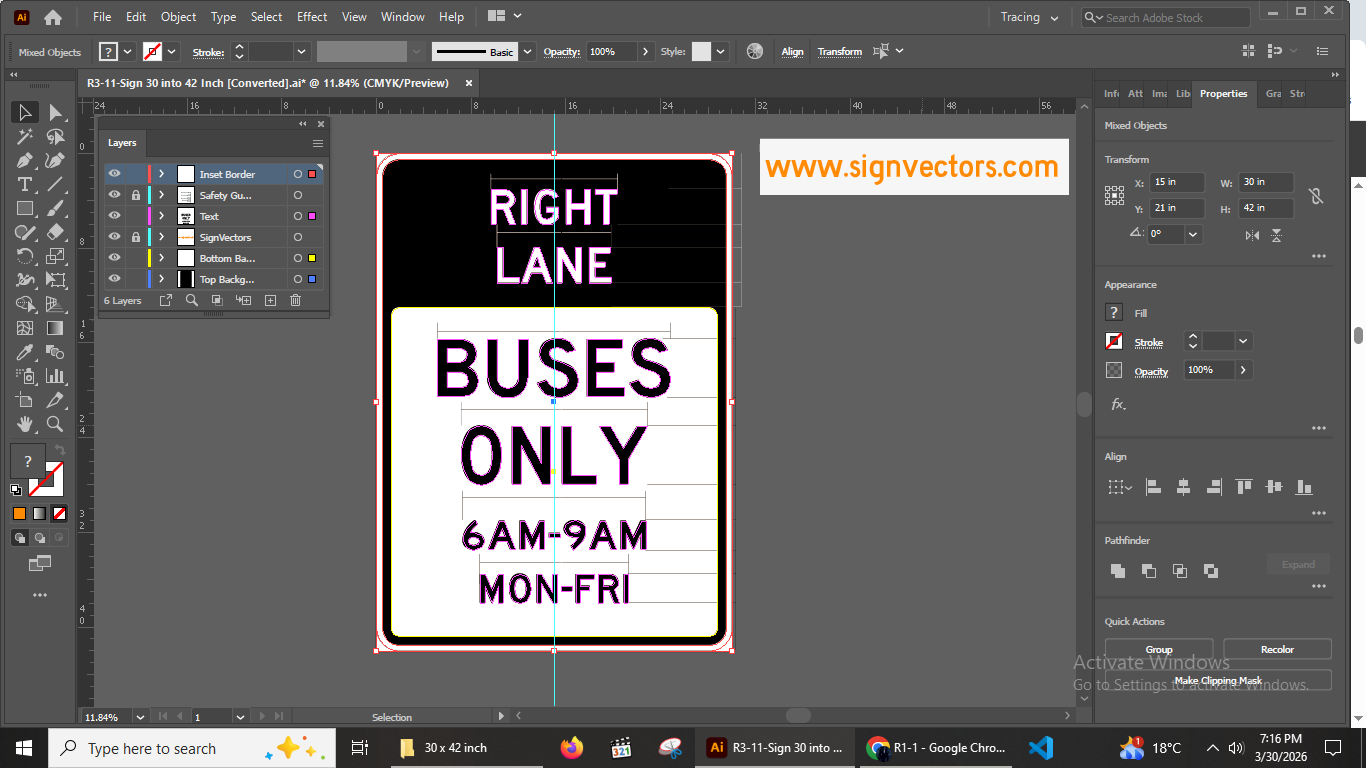

Screenshot from the original Adobe Illustrator working file. Shows layers, vector paths, and professional setup for print production.

R3-11b buse only lane sign Sign MUTCD vector Illustrator file layers preview

Product Description

The R3-11b Bus Lane Sign is a regulatory traffic sign used to designate the right lane exclusively for buses during specific hours. This type of lane control helps prioritize public transportation, reduce congestion, and improve overall traffic efficiency in busy urban areas.

This design clearly follows a structured legend format for maximum readability. The top section indicates the applicable lane ("RIGHT LANE"), the center specifies the permitted vehicles ("BUSES ONLY"), and the bottom displays the operational time period ("6 AM – 9 AM, MON–FRI"). This layout ensures drivers can quickly understand lane restrictions at a glance.

The vector file is created according to official MUTCD standards, maintaining accurate proportions, spacing, and typography. It is fully scalable and suitable for both digital use and high-quality printing without any loss of clarity.

Ideal for traffic engineers, designers, and roadway planners, this file can be used in real-world projects, simulations, and educational materials. For a complete and consistent signage system, explore the full USA MUTCD sign collection.

Technical Specifications

Resolution 300 DPI
Color Mode CMYK
Text Converted to Outlines
Shapes Expanded & Vector Optimized
Files Included EPS, SVG, PDF, JPG, PNG
Size All Standard Sizes

Note: Secure checkout is processed through Gumroad. After completing your purchase, you’ll receive immediate access to download your files. If you need any assistance, please feel free to contact us.

Frequently Asked Questions

What is the R3-11b Bus Lane Sign used for?

This sign indicates that the right lane is reserved exclusively for buses during specific hours. It helps improve public transportation efficiency and reduces traffic congestion.

What does “BUSES ONLY” mean?

“BUSES ONLY” means that only buses are permitted to use the designated lane during the posted hours. Other vehicles must use general-purpose lanes unless otherwise allowed by local regulations.

When are the lane restrictions active?

The restriction is in effect from 6:00 AM to 9:00 AM, Monday through Friday. Outside these hours, the lane may be open to all vehicles depending on local traffic rules.

Can taxis or other vehicles use this lane?

No. This specific sign design indicates that only buses are allowed. Taxis and other vehicles are not permitted unless additional signage specifies otherwise.

What happens if I use the lane illegally?

This is a regulatory traffic sign. Unauthorized use of the bus-only lane during restricted hours may result in fines or penalties under local traffic laws.

Can this sign be edited or customized?

Yes, the vector files (EPS, SVG, AI, PDF) are fully editable. You can easily modify the text, time, or layout using design software like Adobe Illustrator to meet project requirements.
