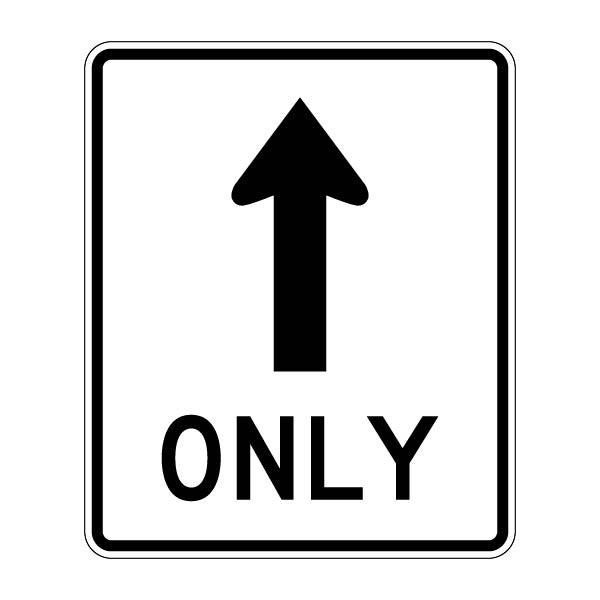

R3-5a Straight Ahead Only Sign Vector File Bundle
M.Ibrahim — Senior Traffic Sign Designer
Design Process and Preview
The R3-5a Straight Ahead Only sign is built using a clean and structured 6-layer vector setup that keeps every element precise, editable, and ready for professional production. Each layer is separated to maintain correct proportions, spacing, and alignment for print accuracy.
Layer Structure Breakdown:
1. Base Shape: A 30 × 36 inch sign panel with a 1.875 inch corner radius and a 0.5 inch inset spacing that defines the internal layout boundary.
2. Border Layer: A 0.75 inch black border that frames the sign and maintains strong visibility and regulatory consistency.
3. Safe Inner Area: The protected layout space inside the border that ensures proper spacing for the symbol and text, keeping the design balanced and readable.
4. Arrow Symbol: A MUTCD-style straight-ahead arrow sized at 3.625 inches, placed for clear directional visibility and designed in fully scalable vector format.
5. Text Layer: “ONLY” set in FHWA Series D lettering at 6 inches height, positioned for maximum legibility and alignment with the symbol.
6. Alignment Guides: Non-printing guides used for precise spacing and layout alignment of all elements. These are removed or hidden before final export.
This layered structure ensures the sign remains accurate, well-balanced, and production-ready for export in EPS, AI, PDF, SVG, PNG, and JPG formats.

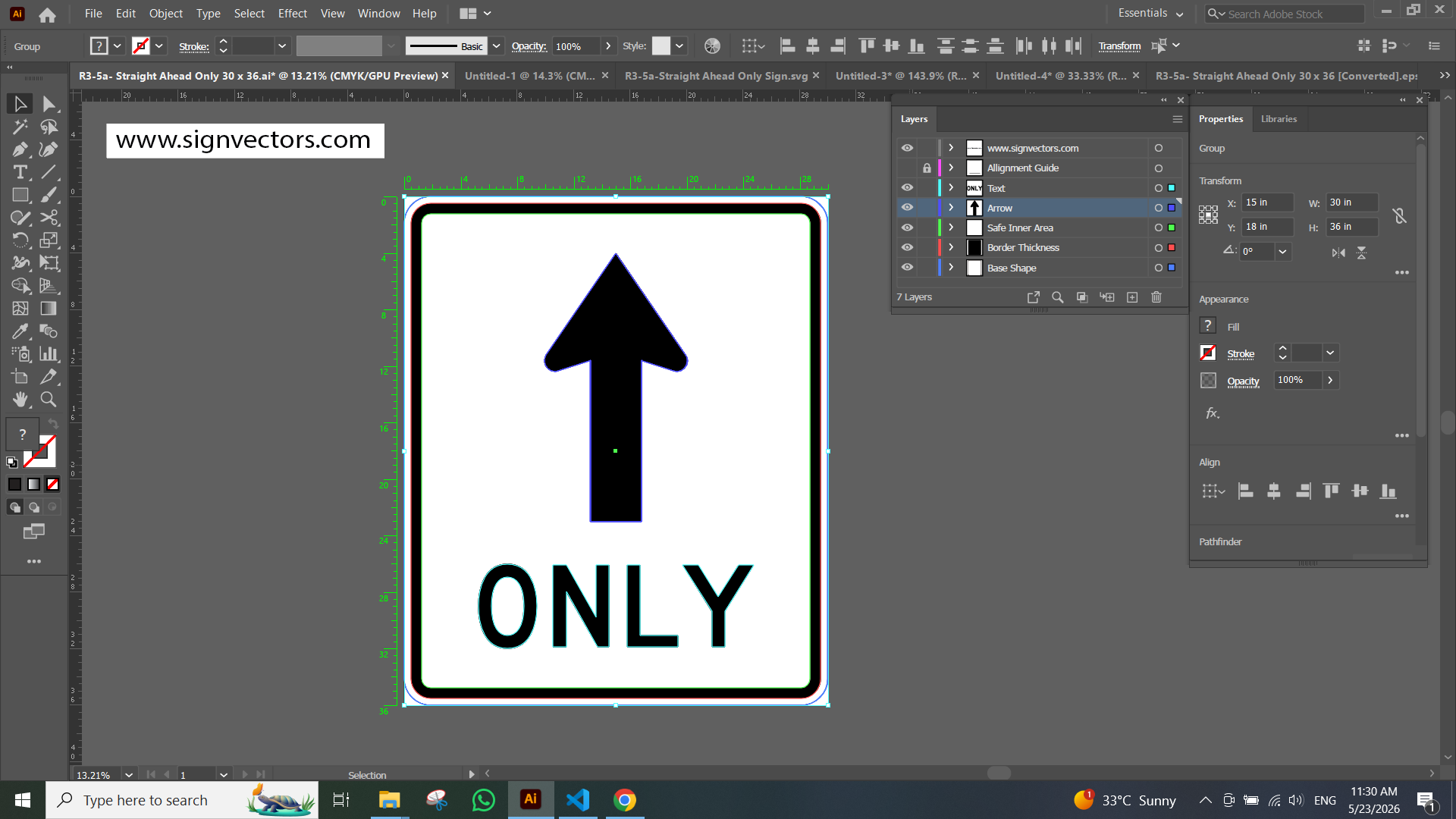

Adobe Illustrator working file — layers, vector paths, CMYK values visible
- ✓ Designed according to MUTCD Section 2B dimension standards.
- ✓ FHWA Series D
- ✓ CMYK color mode (print-safe)
- ✓ 300 DPI — no pixelation at any print size
- ✓ All shapes expanded & optimized
- ✓ Tested in Illustrator, CorelDRAW & AutoCAD
Technical Specifications
| Sign Code | R3-5a |
| Standard | MUTCD — Regulatory Signs (Section 2B) |
| Available Sizes | 30 × 36 in (print standard) | 3000 × 3000 px (digital use) |
| Print Package | CMYK, 30 × 36 in, EPS / PDF / AI (print-ready vector files) |
| Digital Package | RGB, 3000 × 3000 px, SVG / EPS / PNG / JPG (web & screen optimized) |
| Vector Formats | EPS, PDF, AI, SVG |
| Raster Formats | PNG, JPG |
| Color Mode | CMYK (print) / RGB (digital) |
| Resolution | 300 DPI (print export) / 3000 × 3000 px (web export) |
| Text | Converted to outlines for full compatibility across all software |
| Shapes | Fully expanded, scalable vector paths |
| Software Compatibility | Adobe Illustrator, CorelDRAW, Inkscape, AutoCAD |
What Does the R3-5A Straight Only Sign Mean?
The R3-5A Straight Only Sign tells drivers that they must continue moving straight ahead from that lane or position. It means turning left or right is not allowed, and all vehicles must proceed directly forward.
This sign is commonly used in areas where turning movements could disrupt traffic flow or create safety risks, such as busy intersections, multi-lane roads, or locations where lane assignments are strictly controlled. It helps organize traffic by ensuring each lane is used for its intended direction.
The sign is typically placed above or beside a lane before an intersection so drivers have enough time to position their vehicles correctly. By restricting turns and guiding traffic straight ahead, the R3-5A Straight Only Sign improves safety, reduces confusion, and keeps traffic moving smoothly.
Frequently Asked Questions
What is the R3-5a Straight Ahead Only Sign?
This is a regulatory traffic sign that tells drivers they must continue straight ahead and are not allowed to turn left or right at that location. It helps maintain safe and organized traffic flow.
What size is available for this sign?
This sign is available in the standard MUTCD size of 30 × 36 inches. The design is created with correct proportions, spacing, and professional print accuracy for real-world signage use.
What file formats can I download?
You get two download options. The print pack includes EPS, PDF, and AI files in CMYK and official sizing for professional printing. The web pack includes EPS, SVG, JPG, and PNG in RGB, optimized for digital use.
Is the design MUTCD compliant?
Yes, the design follows MUTCD standards and uses the official FHWA Series D font with proper spacing, alignment, and layout for clear readability and compliance.
Can I use this for professional projects?
Yes, this sign is ready for use in traffic control projects, road safety planning, engineering work, signage installation, and professional transportation designs.
