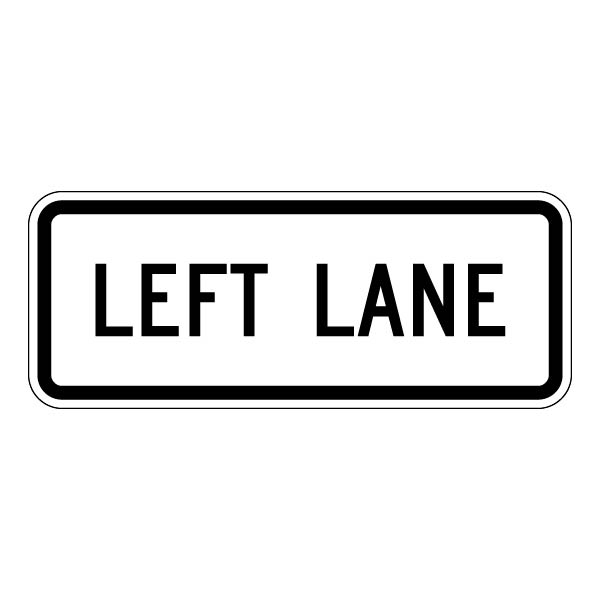

R3-5b Left Lane Control Sign
M.Ibrahim — Senior Traffic Sign Designer
Design Process and Preview
The R3-5b Left Lane Sign is built using a clean and structured 3-layer vector setup that ensures precision, scalability, and full production readiness. Each layer is separated to maintain correct proportions, spacing, and alignment for professional print output.
Layer Structure Breakdown:
1. Base Shape: A 30 × 12 inch sign panel with a 1.875 inch corner radius and a 0.5 inch inset spacing that defines the internal layout boundary.
2. Border Layer: A 0.75 inch black border that frames the sign and ensures strong visibility, durability, and MUTCD-style regulatory consistency.
3. Typography Layer: “LEFT LANE” set in FHWA Series C lettering at 4 inch height, positioned for maximum readability and aligned for clear lane identification in traffic control applications.
This layered structure ensures the R3-5b Left Lane Sign remains accurate, balanced, and production-ready for export in EPS, AI, PDF, SVG, PNG, and JPG formats.

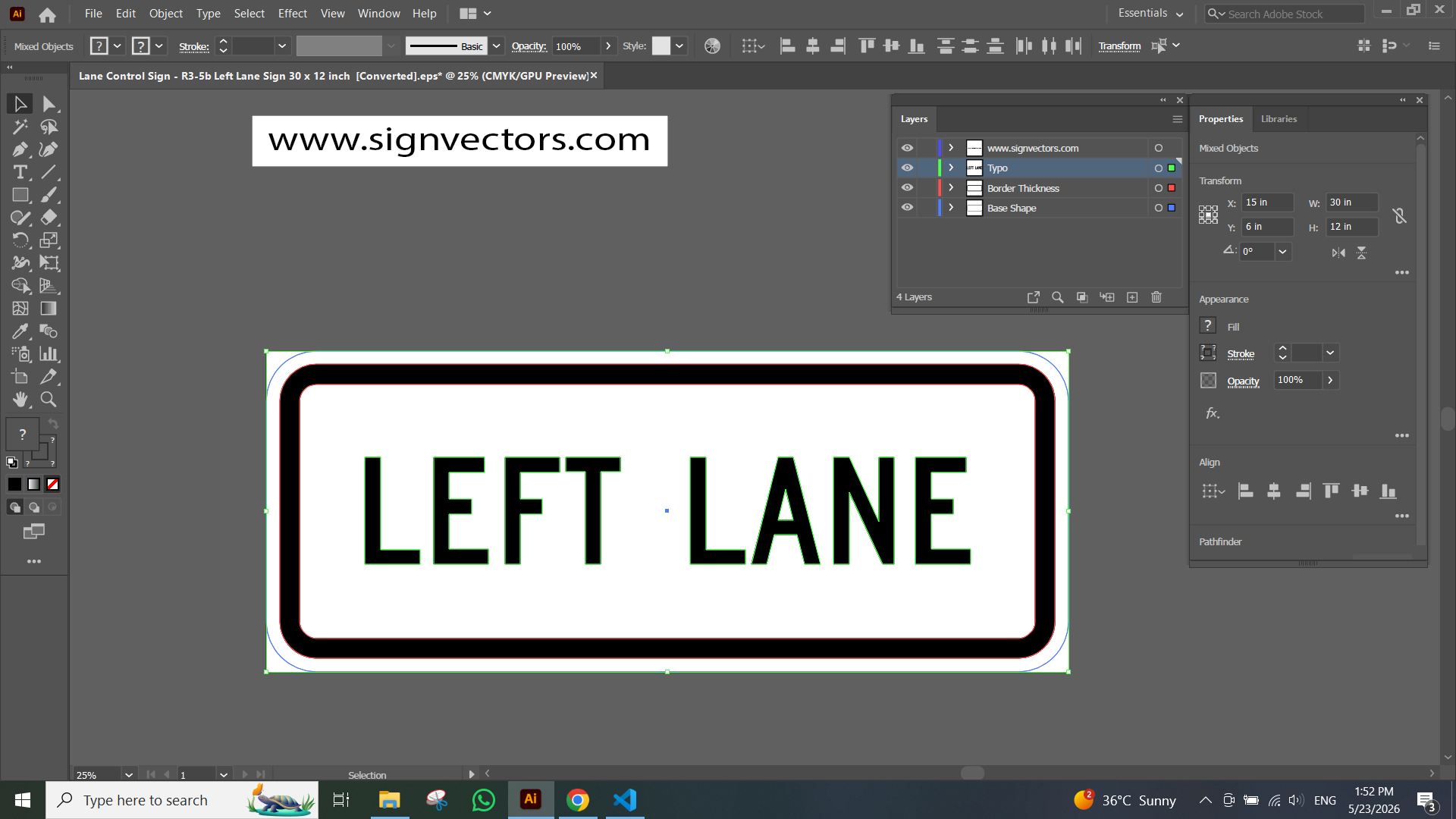

Adobe Illustrator working file — layers, vector paths, CMYK values visible
- ✓ Designed according to MUTCD Section 2B dimension standards.
- ✓ FHWA Series C
- ✓ CMYK color mode (print-safe)
- ✓ 300 DPI — no pixelation at any print size
- ✓ All shapes expanded & optimized
- ✓ Tested in Illustrator, CorelDRAW & AutoCAD
Technical Specifications
| Sign Code | R3-5B |
| Standard | MUTCD — Regulatory Signs (Section 2B) |
| Available Sizes | 30 × 12 in (print standard) | 3000 × 3000 px (digital use) |
| Print Package | CMYK, 30 × 12 in, EPS / PDF / AI (print-ready vector files) |
| Digital Package | RGB, 3000 × 3000 px, SVG / EPS / PNG / JPG (web & screen optimized) |
| Color Mode | CMYK (print) / RGB (digital) |
| Resolution | 300 DPI (print export) / 3000 × 3000 px (web export) |
| Text | Converted to outlines for full compatibility across all software |
| Shapes | Fully expanded, scalable vector paths |
| Software Compatibility | Adobe Illustrator, CorelDRAW, Inkscape, AutoCAD |
What Does the R3-5b Left Lane Sign Mean?
The R3-5b Left Lane Sign tells drivers that the traffic rule or lane instruction applies specifically to the left lane. It is used to clearly identify which lane must follow a directional or movement restriction.
This sign is commonly used in multi-lane roads and intersections where different lanes have different movement instructions. It helps separate traffic flow by ensuring drivers in the left lane understand their required movement or restriction in advance.
The sign is typically installed above or beside the left lane before an intersection or decision point so drivers can safely position their vehicles in time. By clearly defining lane-specific instructions, the R3-5b Left Lane Sign improves road organization, reduces confusion, and enhances traffic safety.
Frequently Asked Questions
What is the R3-5b Left Lane Sign?
This is a regulatory lane identification sign that indicates instructions or restrictions apply specifically to the left lane. It is used to guide drivers and clearly define lane-specific traffic rules.
What does the R3-5b Left Lane Sign mean in traffic control?
It means that the left lane is subject to a specific movement instruction or restriction, helping drivers understand lane assignments before reaching an intersection or decision point.
What size is available for this sign?
This sign is available in the standard MUTCD-based size of 30 × 12 inches. The design is created with correct proportions, spacing, and professional print accuracy for real-world signage use.
What file formats can I download?
You get two download options. The print pack includes EPS, PDF, and AI files in CMYK and official sizing for professional printing. The web pack includes EPS, SVG, JPG, and PNG in RGB, optimized for digital use.
Is the design MUTCD compliant?
Yes, the design follows MUTCD standards and uses the official FHWA Series C font with proper spacing, alignment, and layout for clear readability and compliance.
Can I use this for professional projects?
Yes, this sign is ready for use in traffic control projects, road safety planning, engineering work, signage installation, and professional transportation designs.
