DO Not Pass Sign R4-1 – MUTCD Compliant Vector
Design Process Preview

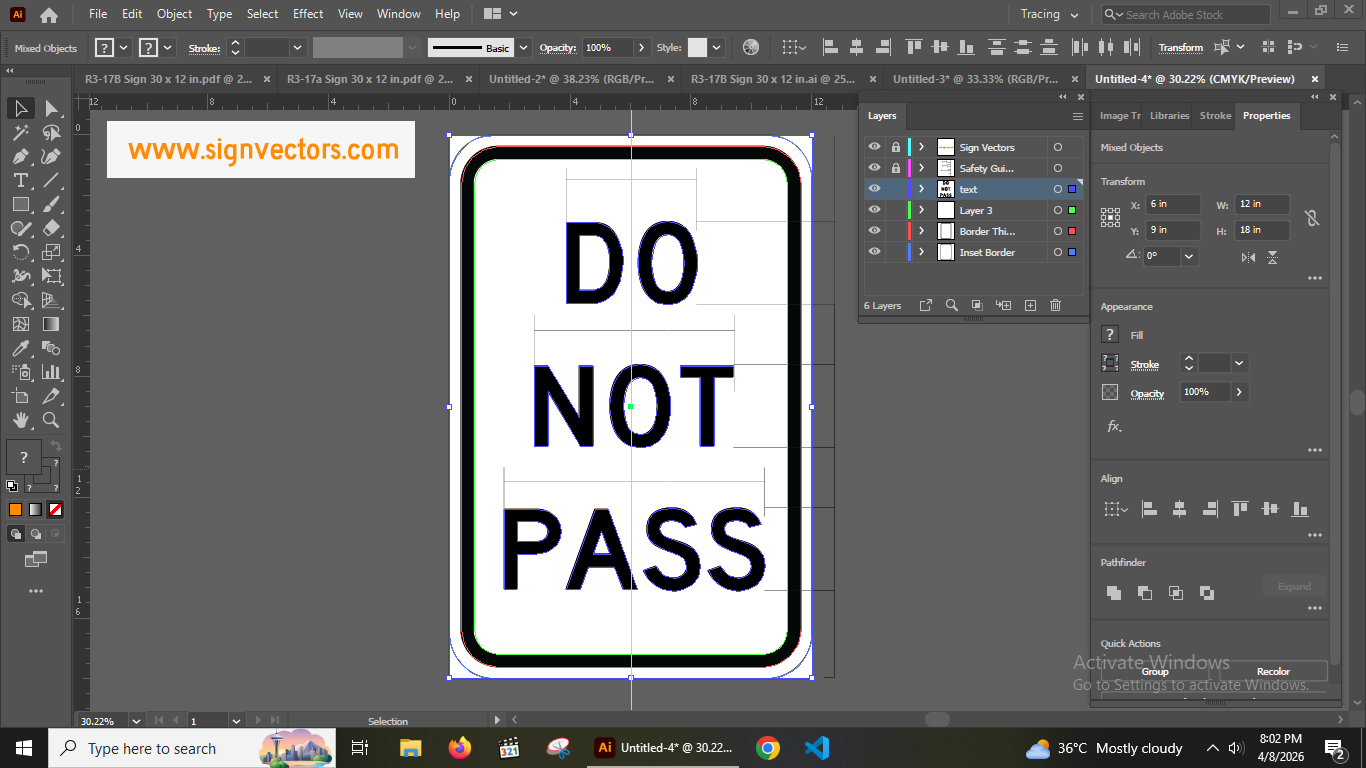

Screenshot from the original Adobe Illustrator working file. Shows layers, vector paths, and professional setup for print production.
R4-1 Do Not Pass Sign – MUTCD Compliant Specification
The R4-1 Do Not Pass sign is a regulatory traffic control device designed in strict accordance with MUTCD (Manual on Uniform Traffic Control Devices) specifications. It is used to enforce no-passing zones where overtaking is unsafe due to roadway conditions such as limited visibility, curves, or restricted sight distance. The design follows standardized engineering requirements to ensure maximum safety, consistency, and driver recognition.
Available Sizes:
This sign is available in all standard official dimensions including 12×18, 18×24, 24×30, 36×48, and 48×60, making it suitable for various road environments such as highways, rural roads, and restricted passing zones.
Intended Use
This sign is intended for use by transportation authorities, civil engineers, road construction contractors, and government agencies responsible for roadway safety and traffic management. It is also suitable for professional design and infrastructure planning applications requiring MUTCD-compliant traffic signage.
Technical Specifications
| Sign Code | R4-1 |
| Category | Regulatory Signs |
| Resolution | 300 DPI |
| Color Mode | CMYK |
| Text | Converted to Outlines |
| Shapes | Expanded & Vector Optimized |
| Files Included | EPS, SVG, PDF, JPG, PNG |
| Available Sizes | 12×18, 18×24, 24×30, 36×48, and 48×60 inches |
Note: Secure checkout is processed through Gumroad. After completing your purchase, you’ll receive immediate access to download your files. If you need any assistance, please feel free to contact us.
