R7-9a No Parking Bike Lane MUTCD Compliant Vector
M.Ibrahim — Senior Traffic Sign Designer
Design Process and Preview
The R7-9a No Parking Bike Lane Sign has been developed using a structured, multi-layer vector system to ensure precision, clarity, and full compliance with MUTCD-style standards. The design approach focuses on maintaining consistent alignment, controlled spacing, and production-ready scalability for professional output.
Layer Structure Breakdown:
1. Base Shape Layer: The sign is built on a 12 × 18 inch vertical rectangular base with 1.5 inch corner radii and a 0.375 inch inset margin, establishing the foundational structure of the layout.
2. Border Thickness Layer: A 0.375 inch solid red border is applied around the perimeter of the sign to ensure strong visual presence and regulatory contrast consistent with MUTCD requirements.
3. Safe Inner Area Layer: A defined white interior area is reserved for all critical design elements, including the “P” symbol, prohibition circle and slash, and “BIKE LANE” text, ensuring clear spacing and visual hierarchy.
4. Symbol P Layer: The parking “P” symbol is rendered in FHWA Series E Modified font with a 5 inch height to ensure legibility and compliance with standardized traffic symbol specifications.
5. Circle and Slash Layer: A red prohibition circle and diagonal slash are applied over the “P” symbol, featuring a 0.625 inch stroke width to clearly communicate restricted parking within the designated bike lane area.
6. Typography Layer: The “BIKE LANE” text is set in FHWA Series C font at 2.5 inch letter height, carefully aligned to maintain balanced spacing and optimal readability within the lower section of the sign.
7. Alignment & Guide Layer: Construction guides and alignment grids are used throughout the design process to ensure precise positioning, consistent proportions, and adherence to MUTCD layout standards.
This structured layering approach ensures the R7-9a No Parking Bike Lane Sign remains clean, accurate, scalable, and fully prepared for professional export in EPS, AI, PDF, SVG, PNG, and JPG formats.

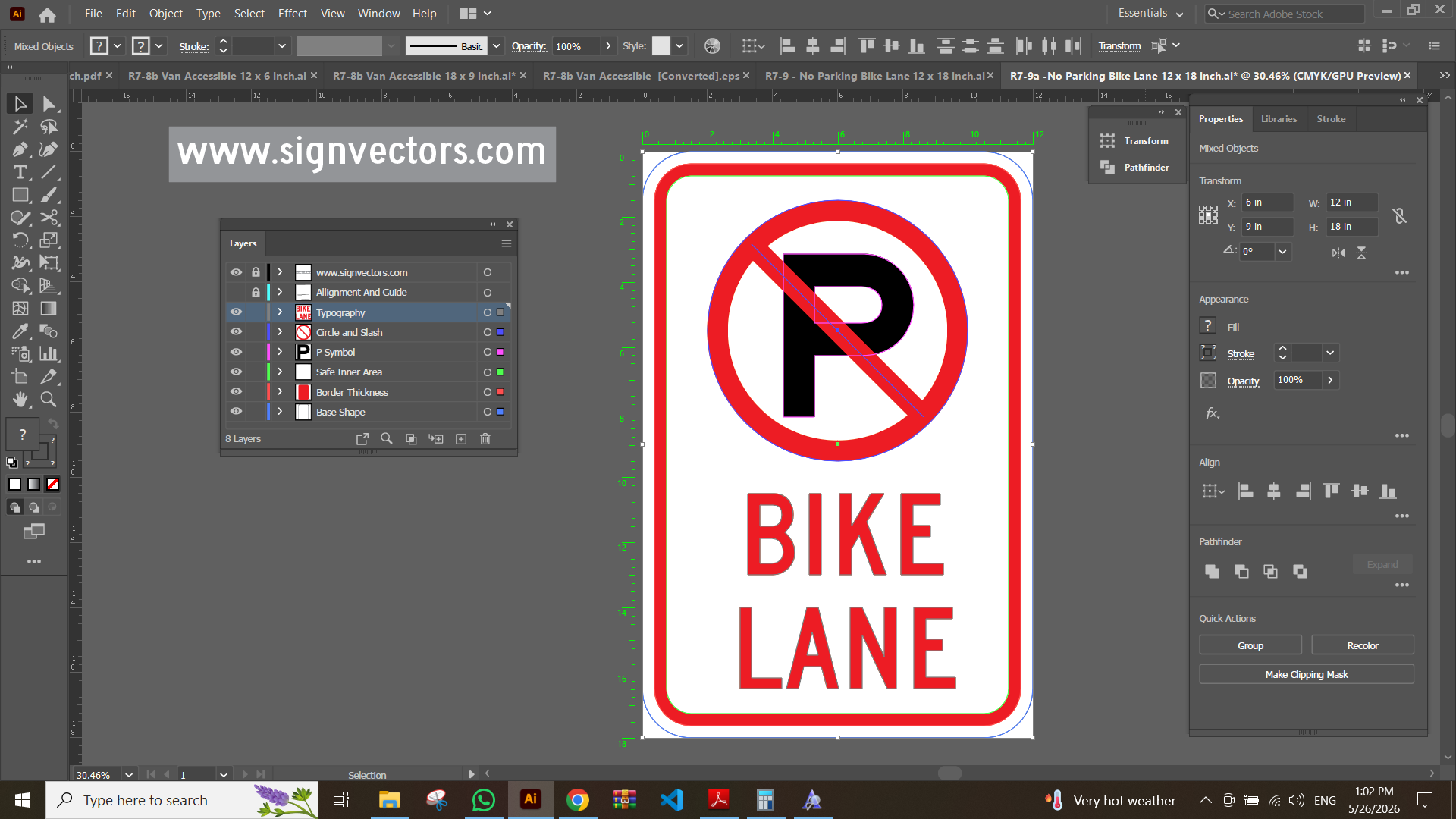

Adobe Illustrator working file — layers, vector paths, CMYK values visible
- ✓ Designed according to MUTCD Section 2B dimension standards.
- ✓ FHWA Series EM and C
- ✓ CMYK color mode (print-safe)
- ✓ 300 DPI — no pixelation at any print size
- ✓ All shapes expanded & optimized
- ✓ Tested in Illustrator, CorelDRAW & AutoCAD
Technical Specifications
| Sign Code | R7-9a |
| Standard | MUTCD — Regulatory Signs (Section 2B) |
| Print Package | CMYK, 12 × 18 in, EPS / PDF / AI (print-ready vector files) |
| Digital Package | RGB, 2000 × 2000 px, SVG / EPS / PNG / JPG (web & screen optimized) |
| Color Mode | CMYK (print) / RGB (digital) |
| Text | Converted to outlines for full compatibility across all software |
| Shapes | Fully expanded, scalable vector paths |
| Software Compatibility | Adobe Illustrator, CorelDRAW, Inkscape, AutoCAD |
What Does the R7-9a No Parking Bike Lane Sign Mean?
The R7-9a No Parking Bike Lane Sign indicates that stopping or parking of any vehicle is strictly prohibited within the designated bike lane area. This space is exclusively reserved for bicycle movement to ensure uninterrupted and safe passage for cyclists.
This sign is typically installed along roadways where dedicated bike lanes are provided. It serves as a clear regulatory instruction to drivers that the marked lane must remain fully clear at all times, including short stops, loading, or unloading activities.
The purpose of this sign is to enhance cyclist safety, reduce roadway obstruction, and maintain smooth and predictable traffic flow. By keeping the bike lane unobstructed, it supports safer shared road usage for both cyclists and motorists.
Frequently Asked Questions
What is the R7-9a No Parking Bike Lane Sign?
This is a regulatory traffic sign that prohibits stopping or parking within the bike lane. It ensures that the designated lane remains fully available for bicycle movement without obstruction.
What does the R7-9a sign mean in traffic control?
It indicates that the bike lane must remain clear at all times. Drivers are not permitted to stop, stand, or park in this area under any circumstances.
Why is the No Parking Bike Lane sign important?
It enhances cyclist safety by preventing vehicle obstruction in the bike lane, reduces traffic conflicts, and supports smooth and predictable traffic flow.
Where is the R7-9a sign usually installed?
It is commonly installed along roadways with dedicated bike lanes, particularly in urban environments, near intersections, and on high-traffic streets.
Is this design MUTCD compliant?
Yes, the design follows MUTCD guidelines with correct layout structure, spacing, typography standards, and regulatory formatting.
Can I use this sign for professional projects?
Yes, it is suitable for traffic engineering projects, road safety planning, infrastructure design, and professional signage applications.
