R1-3P All Way Plaque Sign
M.Ibrahim — Senior Traffic Sign Designer
Design Process and Preview
Every file in the SignVectors catalog is created according to official MUTCD standards, with each size designed to its own exact specifications and dimensions. No shortcuts, no guesswork — just clean, reliable files you can confidently use in professional work.

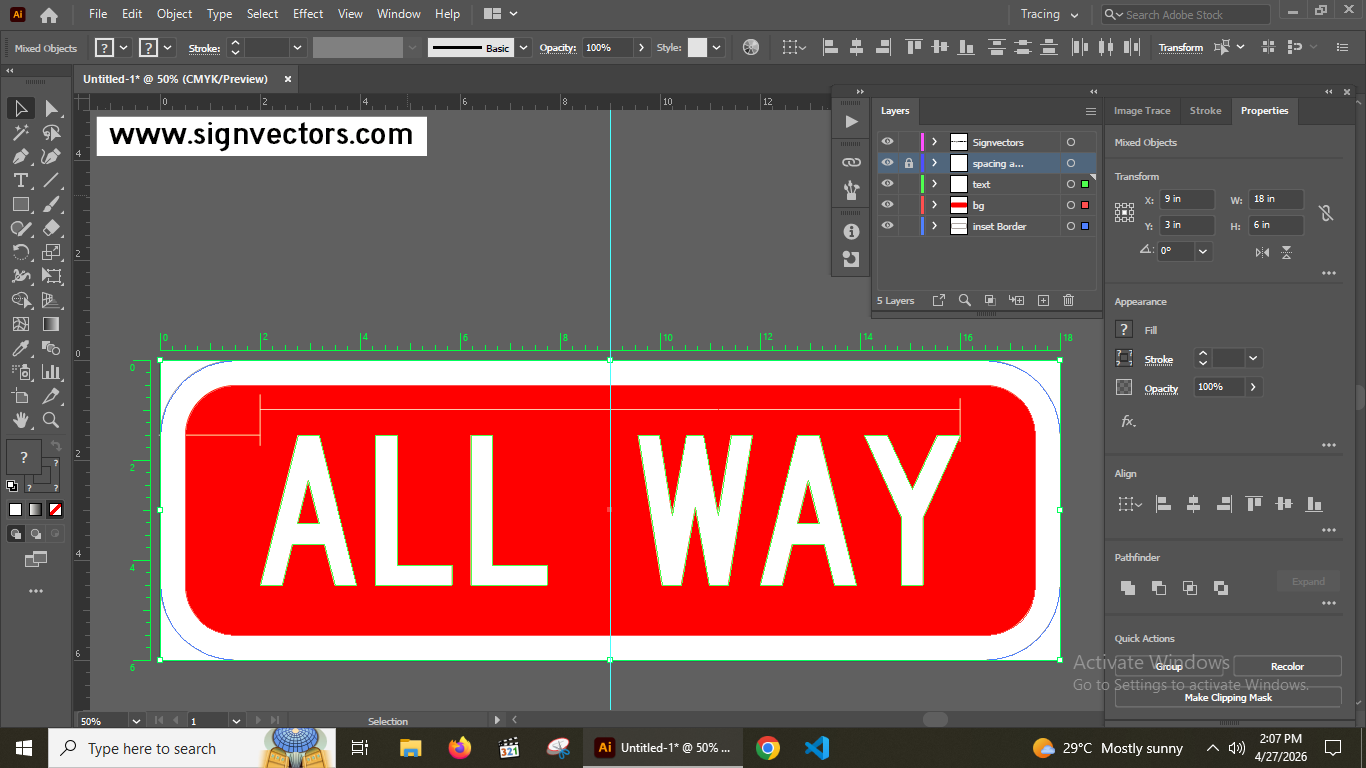

Adobe Illustrator working file — layers, vector paths, CMYK values visible
- ✓ MUTCD Section 2B dimensions verified
- ✓ FHWA Series C font, outlined
- ✓ CMYK color mode (print-safe)
- ✓ 300 DPI — no pixelation at any print size
- ✓ All shapes expanded & optimized
- ✓ Tested in Illustrator, CorelDRAW & AutoCAD

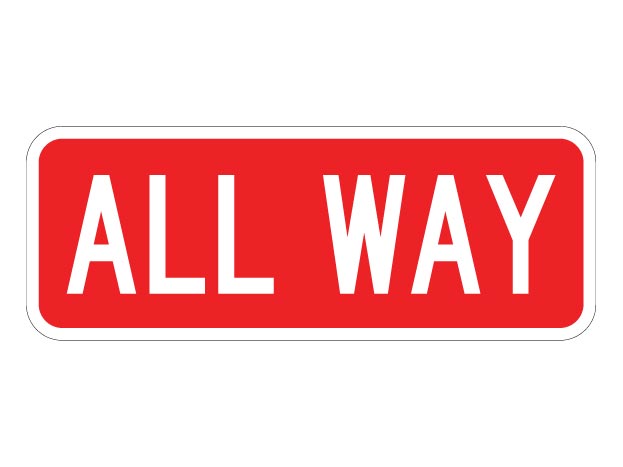

What Does the ALL WAY Sign Mean?
When you see a small red "ALL WAY" plaque below a STOP sign, it simply means everyone stops — not just you. Every single road leading into that intersection has a STOP sign, so no one has the right of way automatically.
The rule becomes simple: first to arrive, first to go. If two cars arrive at the same time, the one on the right goes first.
That little plaque removes the guesswork. Without it, you might wonder "does the other driver have to stop too?" — with it, you know the answer is yes, always.
Technical Specifications
| Sign Code | R1-3p |
| Standard | MUTCD — Regulatory Signs (Section 2B) |
| Available Sizes | 18x6 in , 24x9 in ,30x12 in ,36x15 in , 48x18 in |
| Vector Formats For Print | EPS,DXF,PDF,AI |
| Color Mode | CMYK (print-ready) |
| Resolution | 300 DPI |
| Text | Converted to outlines — no font required |
| Shapes | Fully expanded & vector-optimized |
| Software | Adobe Illustrator, CorelDRAW, Inkscape, AutoCAD |
Frequently Asked Questions
What does the R1-3P ALL WAY sign mean?
The R1-3P ALL WAY sign is a supplemental regulatory sign placed below a STOP sign to indicate that all approaching directions at the intersection must stop before proceeding.
Where is the R1-3P ALL WAY sign used?
It is commonly used at multi-direction intersections where traffic from every approach must come to a complete stop to improve safety and control vehicle movement.
Is the R1-3P ALL WAY sign MUTCD compliant?
Yes. The design follows MUTCD Section 2B standards, including red background, white legend, uppercase FHWA Series lettering, correct border proportions, and reflective material specifications for road use.
What file formats are included?
Vector formats include EPS, SVG, and PDF for scalable use in engineering and signage production. Raster formats include JPG and PNG in multiple resolutions for digital and print applications. A complete professional pack is also available.
Can this file be used for commercial projects?
Yes. The files are suitable for commercial use including road signage manufacturing, civil engineering projects, traffic management systems, and graphic design applications, depending on the license type.
How do I receive the files after purchase?
After checkout, the download link is delivered instantly via email. No manual approval or waiting time is required.
