To Oncoming Traffic Sign R1-2a – MUTCD Compliant Vector
M.Ibrahim Senior Traffic Sign Designer · SignVectors
Design Process and Preview
Every file in the SignVectors catalog is personally reviewed against the latest federal standards before delivery. No shortcuts, no guesswork — just clean, reliable files you can confidently use in professional work.

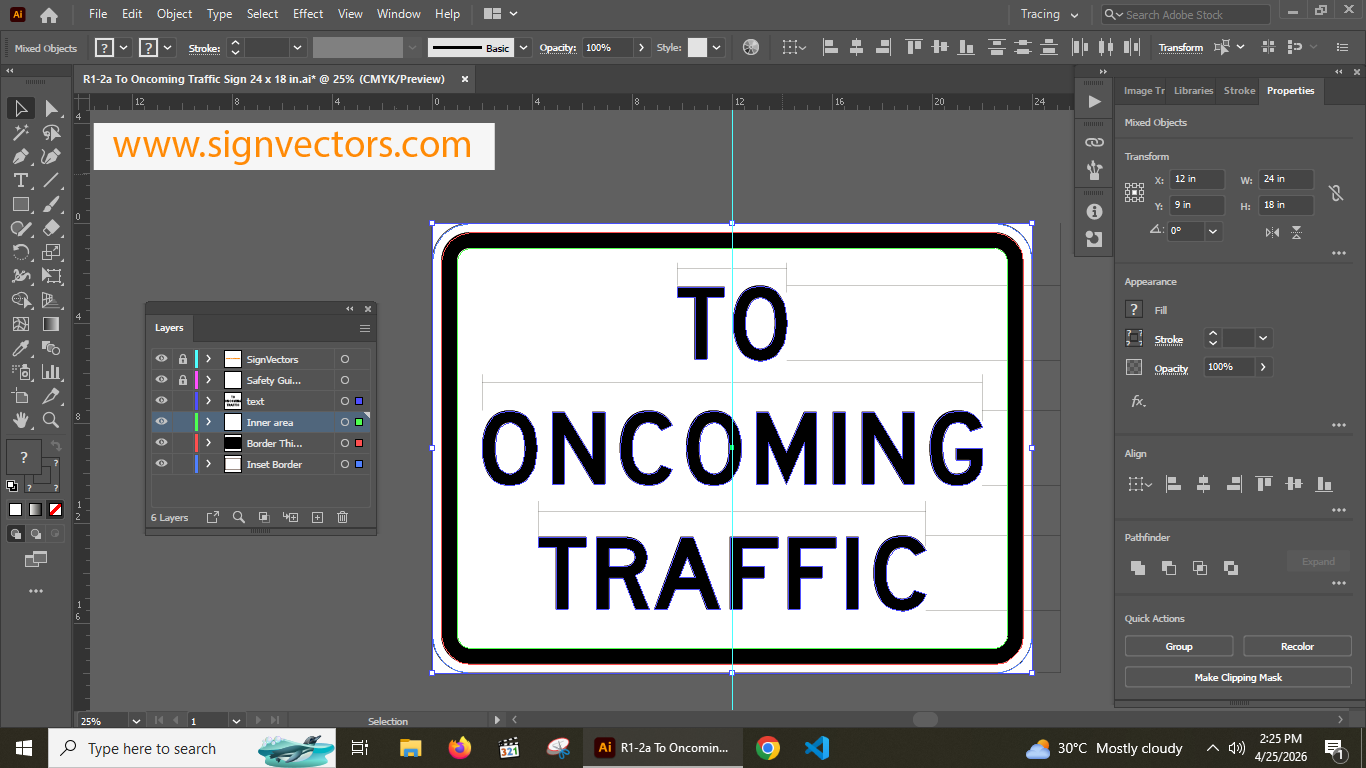

Adobe Illustrator working file showing R1-2a To Oncoming Traffic sign with visible layers, vector paths, and CMYK settings.
- ✓ MUTCD Section 2B dimensions verified
- ✓ FHWA Series D font, outlined
- ✓ CMYK color mode (print-safe)
- ✓ 300 DPI — no pixelation at any print size
- ✓ All shapes expanded & optimized
- ✓ Tested in Illustrator, CorelDRAW & AutoCAD
Technical Specifications
| Sign Code | R1-2a |
| Standard | MUTCD — Regulatory Signs (Section 2B) |
| Available Sizes | 24x18 in 36x30 in 48x36 in |
| Vector Formats | EPS, SVG, PDF |
| Raster Formats | JPG + PNG (600 / 1024 / 2048 / 4096 px) |
| Color Mode | CMYK (print-ready) |
| Resolution | 300 DPI |
| Text | Converted to outlines — no font required |
| Shapes | Fully expanded & vector-optimized |
| Software | Adobe Illustrator, CorelDRAW, Inkscape, AutoCAD |
What Does a To Oncoming Traffic Sign Mean
The To Oncoming Traffic sign is pretty straightforward — it tells you to give way to vehicles coming from the opposite direction. If you see this sign, it means you don’t have the right-of-way, and you need to wait until the road is clear before moving forward.
This sign is officially known as R1-2a (or R1-2aP) in the MUTCD. It’s always placed right below a standard Yield sign and simply adds extra clarity with the message “TO ONCOMING TRAFFIC,” so there’s no confusion about who should go first.
You’ll usually find this sign in places where the road is too narrow for two vehicles to pass at the same time — like one-lane bridges, tight underpasses, or narrow road sections. It helps prevent confusion and keeps traffic flowing safely in these situations.
This vector file follows official MUTCD design standards, so everything from layout to proportions is accurate. Whether you're a designer, engineer, or sign maker, it's ready to use in EPS, SVG, and PDF formats.
Frequently Asked Questions
What does the R1-2a To Oncoming Traffic sign mean?
The R1-2a To Oncoming Traffic sign warns drivers that they must yield or stop for vehicles approaching from the opposite direction. It is typically used where traffic flow is restricted to one lane.
Where is the R1-2a sign used?
It is used at narrow bridges, road construction zones, temporary lane closures, and other locations where opposing traffic must take turns passing safely.
Is the R1-2a sign MUTCD compliant?
Yes. The R1-2a is an official MUTCD regulatory sign, and the design follows MUTCD standards for layout, proportions, and readability.
What file formats are included?
Vector formats include EPS, SVG, and PDF for scalable use in engineering and signage production. All files are fully editable and suitable for professional use.
Can this file be used for commercial projects?
Yes. The files are suitable for commercial use including road signage manufacturing, civil engineering projects, traffic management systems, and graphic design applications, depending on the license type.
How do I receive the files after purchase?
After checkout, the download link is delivered instantly via email. No manual approval or waiting time is required.
