Trucks 40 Sign R2-2 MUTCD Compliant Vector
M.Ibrahim — Senior Traffic Sign Designer
Design Process and Preview
This R2-2 Truck Speed Limit Sign is available in all official MUTCD sizes — 24 × 24 in, 36 × 36 in, and 48 × 48 in. Every size is professionally designed with strict adherence to MUTCD standards, ensuring correct proportions, layout, typography, border spacing, and approved black-and-white color specifications.
Each sign is built individually according to its exact MUTCD requirements rather than simple scaling, providing maximum accuracy for real-world traffic control applications. These production-ready vector files are ideal for professional printing, municipal projects, contractor use, roadway planning, and regulatory compliance.

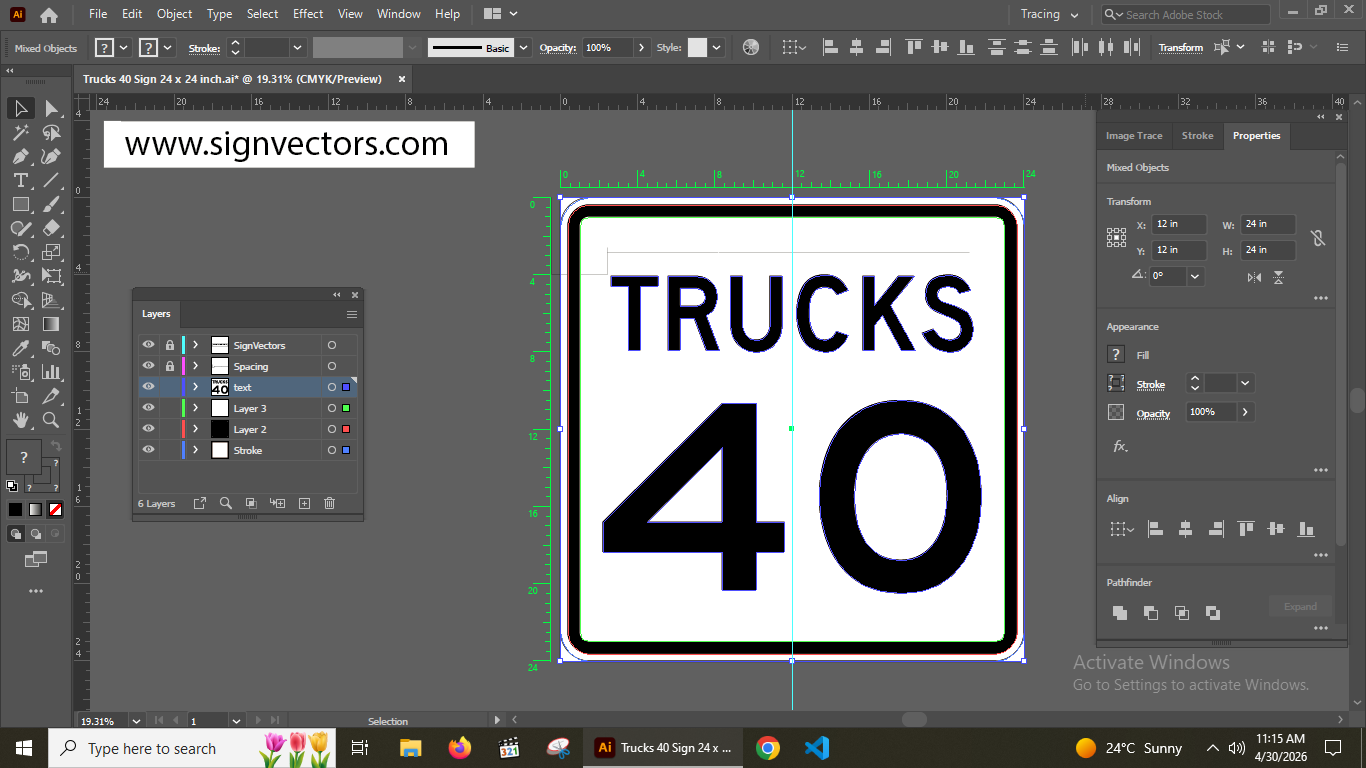

Adobe Illustrator working file — layers, vector paths, CMYK values visible
- ✓ Designed according to MUTCD Section 2B dimension standards.
- ✓ FHWA Series D for letters and FHWA Series E for numbers.
- ✓ CMYK color mode (print-safe)
- ✓ 300 DPI — no pixelation at any print size
- ✓ All shapes expanded & optimized
- ✓ Tested in Illustrator, CorelDRAW & AutoCAD
Technical Specifications
| Sign Code | R2-2 |
| Standard | MUTCD — Regulatory Signs (Section 2B) |
| Available Sizes | 24x24 in , 36x36 in ,48x48 in |
| Vector Formats For Print | EPS,PDF,AI |
| Color Mode | CMYK (print-ready) |
| Resolution | 300 DPI |
| Text | Converted to outlines — no font required |
| Shapes | Fully expanded & vector-optimized |
| Software | Adobe Illustrator, CorelDRAW, Inkscape, AutoCAD |
What Does the Truck Speed Limit 40 Sign Mean?
When you see a R2-2 Truck Speed Limit 40 sign, it means the maximum legal speed allowed for trucks on that road is 40 miles per hour under normal driving conditions.
Trucks, including commercial vehicles and heavy transport vehicles, must not exceed this posted speed limit unless road conditions, weather, traffic, or road safety require even slower speeds.
This sign helps improve traffic safety, control heavy vehicle movement, reduce accident risks, and maintain safer road conditions for both trucks and other road users.
Frequently Asked Questions
What is the R2-2 Truck Speed Limit sign?
The R2-2 sign is a regulatory traffic sign that indicates the maximum speed limit specifically for trucks. It’s designed according to MUTCD standards to ensure consistency, legibility, and safety on the road.
What sizes are available for this sign?
This sign comes in all official MUTCD sizes: 24 × 24 in, 36 × 36 in, and 48 × 48 in. Each size is designed with proper proportions, letter heights, border thickness, and spacing according to MUTCD requirements.
What file formats can I download?
You can download the sign in EPS, SVG, PDF, JPG, and PNG formats. The vector files (EPS & SVG) can be resized freely without losing quality, making them perfect for digital projects, print, or large roadside signs.
Are the letters and numbers sized correctly for visibility?
Yes! Each size follows MUTCD specifications with separate heights for letters (like 'TRUCKS') and numbers (like '40') to ensure maximum legibility from a distance.
Can I use these signs for professional road projects?
Absolutely. These signs are fully MUTCD-compliant, meeting the official standards for regulatory traffic signs in the U.S. They’re suitable for roadside installations, mockups, planning, and professional design projects.
