Speed Limit 50 Sign R2-1 MUTCD Compliant
M.Ibrahim — Senior Traffic Sign Designer
Design Process and Preview
Every file in the SignVectors catalog is created according to official MUTCD standards, with each size designed to its own exact specifications and dimensions. No shortcuts, no guesswork — just clean, reliable files you can confidently use in professional work.

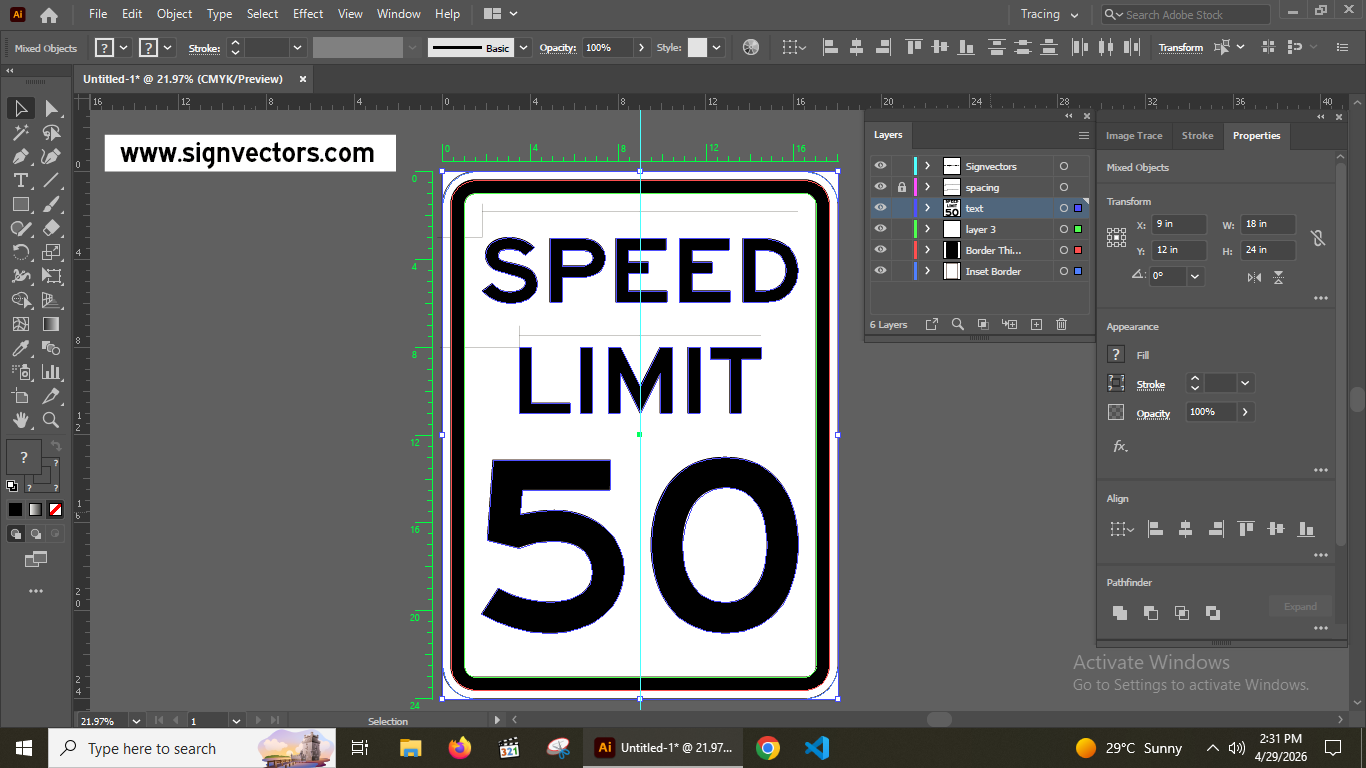

Adobe Illustrator working file — layers, vector paths, CMYK values visible
- ✓ MUTCD Section 2B dimensions verified
- ✓ FHWA Series E font, outlined
- ✓ CMYK color mode (print-safe)
- ✓ 300 DPI — no pixelation at any print size
- ✓ All shapes expanded & optimized
- ✓ Tested in Illustrator, CorelDRAW & AutoCAD
Technical Specifications
| Sign Code | R2-1 |
| Standard | MUTCD — Regulatory Signs (Section 2B) |
| Available Sizes | 18x24 in , 24x30 in ,36x48 in ,48x60 in |
| Vector Formats For Print | EPS,PDF,AI |
| Color Mode | CMYK (print-ready) |
| Resolution | 300 DPI |
| Text | Converted to outlines — no font required |
| Shapes | Fully expanded & vector-optimized |
| Software | Adobe Illustrator, CorelDRAW, Inkscape, AutoCAD |
What Does the Speed limit 50 Sign Mean?
When you see a R2-1 Speed Limit 50 sign, it means the maximum legal speed allowed on that road is 50 miles per hour under normal driving conditions.
Drivers must not exceed this posted limit unless road conditions, weather, or traffic require even slower speeds for safety.
This sign helps regulate traffic flow, improve road safety, and reduce the risk of accidents by keeping vehicle speeds controlled and consistent.
Frequently Asked Questions
What does the R2-1 Speed Limit 50 sign mean?
The R2-1 Speed Limit 50 sign is a regulatory traffic sign that sets the maximum legal speed limit at 50 miles per hour. Drivers must not exceed this posted speed under normal road conditions.
Where is the R2-1 Speed Limit 50 sign used?
It is commonly installed on urban roads, highways, municipal streets, and transitional traffic zones where a 50 MPH maximum speed is required for traffic control and road safety.
Is the R2-1 Speed Limit 50 sign MUTCD compliant?
Yes. The design follows MUTCD Section 2B standards, including black legend on a white reflective background, proper border proportions, FHWA Series lettering, and official regulatory sign specifications for roadway use.
What file formats are included?
Vector formats include EPS, SVG, and PDF for scalable use in engineering and signage production. Raster formats include JPG and PNG in multiple resolutions for digital and print applications. A complete professional pack is also available.
Can this file be used for commercial projects?
Yes. The files are suitable for commercial use including road signage manufacturing, civil engineering projects, traffic management systems, and graphic design applications, depending on the license type.
How do I receive the files after purchase?
After checkout, the download link is delivered instantly via email. No manual approval or waiting time is required.
